The LN3115 900KV FPV brushless motor is a high-performance motor designed for long-range flights. It supports 6S batteries and is compatible with 8 to 10-inch propellers. This motor is widely used in FPV (First-Person View) drones, particularly for long-duration flight requirements. With a KV rating of 900, it delivers efficient rotation speed, providing higher thrust for long-range flight.
900KV Brushless Motor: Efficient and stable, ideal for larger propellers, enhancing flight stability and endurance.
Supports 6S Battery: Provides higher voltage and stronger thrust, ensuring smoother flights and extended flight time.
Compatible with 8-10 Inch Propellers: Designed for larger propellers, perfect for long-range flights, offering greater thrust and longer flight times.
Optimized for FPV Flights: Specifically designed for FPV drones, ensuring stable, long-duration flights for long-range missions.
Durable Construction: Built with high-quality materials to withstand prolonged flights and harsh conditions.
The LN3115 900KV FPV brushless motor is primarily used in FPV drones for long-duration flights, making it ideal for applications such as long-range aerial photography, remote monitoring, exploration, and racing. It provides stable thrust and longer flight times, making it the perfect choice for professional aerial drones and long-endurance drone enthusiasts.
Retek
نِطَاق
بسأل

| Electric Spec. | |||||||||||||||||||||||||||
|
Max. P (W) |
Voltage (V) |
Max. I. A) |
KV |
No-load Current (A) |
Resistance (mΩ) |
Poles |

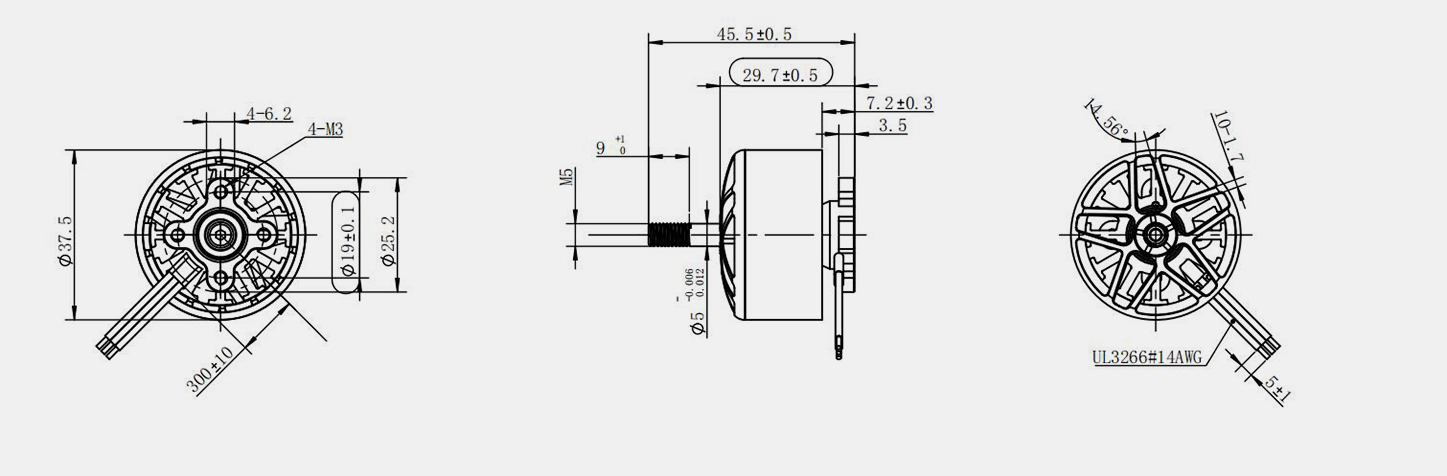

Motor Dim. (mm) |
Stator Dim. (mm) |
Mounting (mm) |
N.W. (g) |
Prop. (inch) |
||||||||||||||||
| 1526 | 25.2 | 65 | 900 | 1.2 | 53 | 14 | φ37.5*29.7 | φ31*15 | M3-19*19 | 108 | 10” | ||||||||||||||||
| Thrust Testing Data | |||||||||||||||||||||||||||
| Propeller | KV Value | Throttle |
Voltage (V) |
Current (A) |
Thrust Force (g) |
Speed (RPM) |
Power (W) |
Efficiency (g/W) |
Temp. (℃) |
||||||||||||||||||
| GF1050*3 | 700 | 10% | 24.01 | 0.3 | 34 | 1572 | 6.60 | 5.22 | 44.70 | ||||||||||||||||||
| 20% | 24.01 | 1.0 | 165 | 3264 | 23.27 | 7.08 | 42.20 | ||||||||||||||||||||
| 30% | 23.99 | 2.15 | 362 | 4689 | 51.48 | 7.03 | 40.00 | ||||||||||||||||||||
| 40% | 23.97 | 4.08 | 649 | 6014 | 97.70 | 6.64 | 39.00 | ||||||||||||||||||||
| 50% | 23.95 | 7.43 | 1026 | 7418 | 177.97 | 5.76 | 38.40 | ||||||||||||||||||||
| 60% | 23.92 | 13.22 | 1502 | 8913 | 316.10 | 4.75 | 38.70 | ||||||||||||||||||||
| 70% | 23.87 | 19.80 | 1967 | 10165 | 472.60 | 4.16 | 40.00 | ||||||||||||||||||||
| 80% | 23.81 | 28.17 | 2476 | 11328 | 670.70 | 3.69 | 46.20 | ||||||||||||||||||||
| 90% | 23.75 | 37.82 | 2958 | 12316 | 898.25 | 3.29 | 55.60 | ||||||||||||||||||||
| 100% | 23.68 | 48.52 | 3419 | 13184 | 1148.91 | 2.98 | 73.00 | ||||||||||||||||||||
| GF1050*3 | 740 | 10% | 24.02 | 0.3 | 41 | 1665 | 7.71 | 5.34 | 24.30 | ||||||||||||||||||
| 20% | 24.01 | 1.1 | 183 | 3396 | 26.46 | 6.92 | 24.50 | ||||||||||||||||||||
| 30% | 24.00 | 2.47 | 416 | 4853 | 59.33 | 7.01 | 24.70 | ||||||||||||||||||||
| 40% | 23.97 | 4.74 | 724 | 6262 | 113.55 | 6.38 | 25.40 | ||||||||||||||||||||
| 50% | 23.95 | 8.44 | 1105 | 7710 | 202.21 | 5.47 | 26.50 | ||||||||||||||||||||
| 60% | 23.91 | 15.25 | 1620 | 9311 | 364.70 | 4.44 | 28.90 | ||||||||||||||||||||
| 70% | 23.86 | 22.51 | 2117 | 10552 | 537.16 | 3.94 | 33.00 | ||||||||||||||||||||
| 80% | 23.80 | 31.80 | 2620 | 11704 | 756.72 | 3.46 | 39.80 | ||||||||||||||||||||
| 90% | 23.73 | 42.03 | 3086 | 12649 | 997.35 | 3.09 | 50.30 | ||||||||||||||||||||
| 100% | 23.67 | 53.69 | 3542 | 13434 | 1270.82 | 2.79 | 65.90 | ||||||||||||||||||||
| GF1050*3 | 900 | 10% | 24.02 | 0.4 | 52 | 1822 | 8.91 | 5.82 | 25.20 | ||||||||||||||||||
| 20% | 24.01 | 1.2 | 208 | 3603 | 29.41 | 7.07 | 25.40 | ||||||||||||||||||||
| 30% | 24.00 | 2.78 | 461 | 5126 | 66.62 | 6.93 | 25.00 | ||||||||||||||||||||
| 40% | 23.97 | 5.35 | 804 | 6608 | 128.22 | 6.27 | 26.60 | ||||||||||||||||||||
| 50% | 23.95 | 9.68 | 1245 | 8114 | 231.86 | 5.37 | 27.70 | ||||||||||||||||||||
| 60% | 23.90 | 17.55 | 1830 | 9811 | 419.47 | 4.36 | 29.70 | ||||||||||||||||||||
| 70% | 23.84 | 25.90 | 2373 | 11100 | 617.53 | 3.84 | 33.90 | ||||||||||||||||||||
| 80% | 23.76 | 37.24 | 2985 | 12387 | 884.85 | 3.37 | 39.90 | ||||||||||||||||||||
| 90% | 23.68 | 50.08 | 3550 | 13413 | 1185.89 | 2.99 | 49.90 | ||||||||||||||||||||
| 100% | 23.61 | 64.66 | 4066 | 14221 | 1526.50 | 2.66 | 64.40 | ||||||||||||||||||||
